Hubei Fotma Machinery Co., Ltd.
Tungsten, Molybdenum, Titanium, Tungsten Carbide and Investment Casting Products
| Place of Origin: | P.R. China |
|---|---|
| Brand Name: | FOTMA |
| Certification: | ISO 9001:2000 |
| Model Number: | Customized |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | Plastic boxes, Paper cartons |
| Delivery Time: | 20-25 days |
| Payment Terms: | T/T, L/C, Western Union, PayPal |
| Supply Ability: | 2 MT / Month |
| W Content: | > 99.95% | Diameter: | 1.0mm - 100mm |
|---|---|---|---|
| Length: | 10mm - 1200mm | Surface: | Black, Machined, Ground |
| Density: | > 19.1 G / Cm3 | Tolerance: | + / - 0.05mm |
| High Light: | Surface Black Ground Pure Tungsten Rods,1200mm Pure Tungsten Rods,19.2g/cm3 1200mm tungsten pipe |
||
99.95% Pure Tungsten Products Tungsten Rods Surface Black / Ground For Industry
Tungsten is resistant to corrosion when the humidity is below 60%. However, it must be protected at elevated temperatures. Tungsten can oxidize in the presence of oxidizing gases at temperatures above 250° C. Despite this vulnerability, Molten glass, nitrogen, inert gases, molten metals and ceramic oxides only slightly affect it.
Tungsten Rods Availability
Tungsten rod is manufactured as random length pieces or cut to customers' desired lengths. Standard diameter and length tolerances are listed as follows. Other, closer tolerances can be quoted on request. In addition, there are three different surface processes or finishes which are provided, depending upon the desired end use.
Features of Tungsten Rods:
Surface: Black and polished
Purity: ≥ 99.95%
Density: ≥ 19.2g/cm3,
Surface roughness: < 1.6
Dia: 1.0-120mm
Standard: ASTM, GB
Application of Tungsten Rods:
Used in the manufacturing of electric light source and electric vacuum parts and get an electric shock materials
Used as a means of high temperature and high temperature structure parts
In the rare earth industry used as electrode
Specifications of Tungsten Rods:
|
Diamenter(mm) |
Tolerance(mm) |
|
|
Black rod |
Ground |
|
|
<=5.0 |
±0.5 |
±0.03 |
|
5 |
±0.5 |
±0.03 |
|
>5.0-8.0 |
±0.5 |
±0.03 |
|
>8.0-16.0 |
±0.5 |
±0.08 |
Tungsten Material Grades We Supply:
|
Type |
Purity of Tungsten |
Application |
|
WAL 1 |
>=99.92% |
filament,cathode and components for electron tubes,electrode for the gas discharge tube.etc. |
|
WAL2 |
||
|
WAL3 |
>=99.92% |
grid siderod,lead,support,electrode for the discharge lamp,etc. |
|
W1 |
>=99.95% |
grid siderod,support,lead and electrode,etc. |
|
W2 |
>=99.92% |

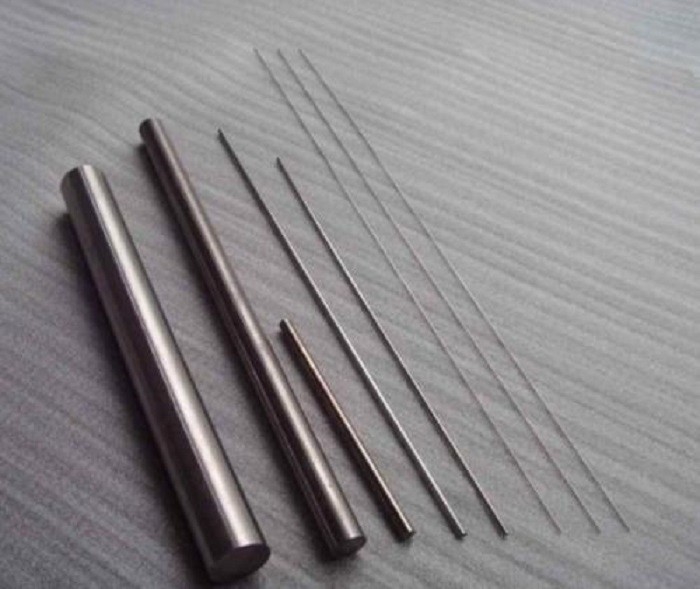

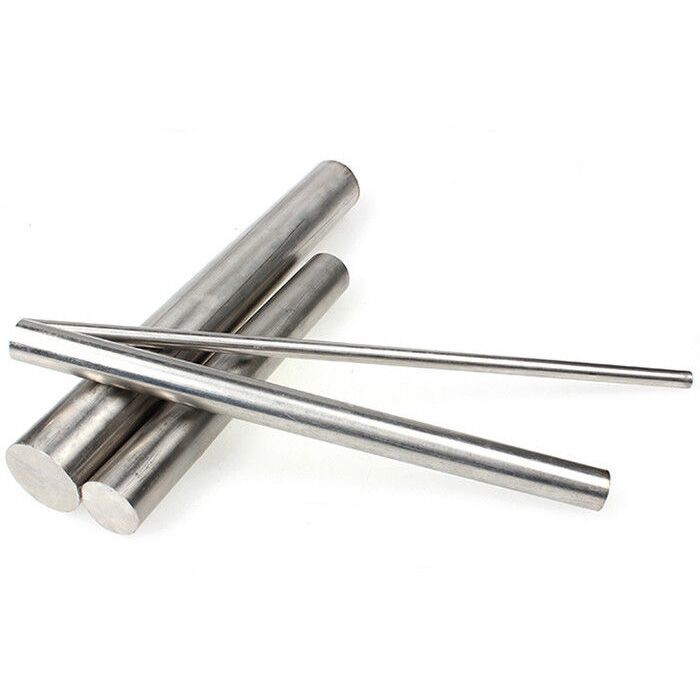

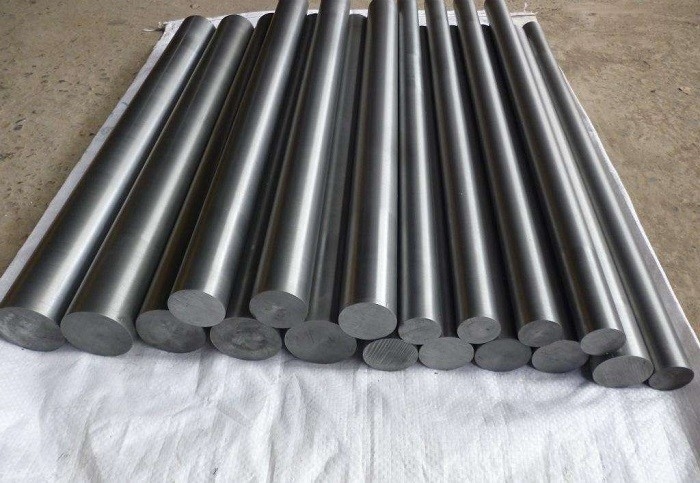

Products Show:
