Tungsten, Molybdenum, Titanium, Tungsten Carbide and Investment Casting Products
| Place of Origin: | P.R.China |
|---|---|
| Brand Name: | FOTMA |
| Certification: | ISO 9001:2008 |
| Model Number: | Carbide Plates |
| Minimum Order Quantity: | 1 pc |
| Price: | Negotiable |
| Packaging Details: | In plywood boxes |
| Delivery Time: | 20-25 days after deposit |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1MT/month |
| Carbide Grade: | YG8, YG6, YG10 Etc | Surface: | Machined , Ground Finished |
|---|---|---|---|
| Hardness: | No Less Than 90.5 HRA | Thickness: | 2.0mm To 100mm |
| OEM: | Acceptable | Application: | Wear Resistant Plates |
| High Light: | YG8 YG10 Tungsten Carbide Plate,YG6 Ground Finished Carbide Wear Plates,YG6 90.5HRA Tungsten Carbide Plate |
||
YG6 YG8 YG10 Tungsten Carbide Plate for Machined / Ground Finished Carbide Wear Plates
Tungsten carbide is a chemical compound that includes carbon and tungsten, which is similar to titanium carbide. The tungsten carbide was originally developed for use as a cutting tool. In the industry of the machine, there are many usage today.
The introduction of the tungsten carbide plates
The tungsten carbide plates are mostly used for cutting tools and wear parts. They could be ground or unground. They are very high wear resistance to help the application life. There are some recommended grades: YG6C, YG8C, YG6, YG8, YG10 and so on, which meet the standard GB, ANSI and so on.
The advantages of the carbide wear plates
The carbide wear plates are chosen from the 100%virgin raw material, which meet the ISO 9001 quality system. The professional engineer designs the mould to ensure the accuracy of final products. The tungsten carbide wear plates are developed by the advanced technology, the automatic pressing, HIP sintering with the strict tolerance extent control. The HIP sintering can ensure the stable microstruture. The average working life of tungsten carbide plates is increased by 25%.
Sizes and tolerance of standard tungsten carbide plate
|
Dimension & Tolerance |
|||||||||
|
NO. |
Type |
Dimension & Tolerance |
NO. |
Type |
Dimension & Tolerance |
||||
|
a 〔mm〕 |
b 〔mm〕 |
L 〔mm〕 |
a 〔mm〕 |
b 〔mm〕 |
L 〔mm〕 |
||||
|
1 |
XB0302L |
3 |
2 |
≤330 |
20 |
XB1502L |
15 |
2 |
≤330 |
|
2 |
XB0403L |
4 |
3 |
|
21 |
XB15T3L |
|
3.5 |
|
|
3 |
XB0502L |
5 |
2 |
|
22 |
XB1504L |
|
4 |
|
|
4 |
XB05T3L |
5 |
3.5 |
|
23 |
XB1603L |
16 |
3 |
|
|
5 |
XBT501L |
5.5 |
1 |
|
24 |
XB1703L |
17 |
3 |
|
|
6 |
XB0603L |
6 |
3 |
|
25 |
XB1705L |
|
5 |
|
|
7 |
XB0802L |
8 |
2 |
|
26 |
XB1802L |
18 |
2 |
|
|
8 |
XB0803L |
8 |
3 |
|
27 |
XB18T3L |
|
3.5 |
|
|
9 |
XB1002L |
10 |
2 |
|
28 |
XB2002L |
20 |
2 |
|
|
10 |
XB10T2L |
10 |
2.5 |
|
29 |
XB2003L |
|
3 |
|
|
11 |
XB1003L |
10 |
3 |
|
30 |
XB20T3L |
|
3.5 |
|
|
12 |
XB10T3L |
10 |
3.5 |
|
31 |
XB2005L |
|
5 |
|
|
13 |
XB1202L |
12 |
2 |
|
32 |
XB22T3L |
22 |
3.5 |
|
|
14 |
XB12T2L |
12 |
2.5 |
|
33 |
XB2204L |
|
4 |
|
|
15 |
XB1203L |
12 |
3 |
|
34 |
XB25T3L |
25 |
3.5 |
|
|
16 |
XB12T3L |
12 |
3.5 |
|
35 |
XB2504L |
|
4 |
|
|
17 |
XB12T4L |
12 |
4.5 |
|
36 |
XB3005L |
30 |
5 |
|
|
18 |
XB1205L |
12 |
5 |
|
37 |
XB3203L |
32 |
3 |
|
|
19 |
XB1403L |
14 |
3 |
|
38 |
XB3404L |
34 |
3 |
|
|
Dimension & Tolerance |
|||
|
a & b 〔mm〕 |
a&b Tolerance〔mm〕 |
L Length 〔mm〕 |
L Tolerance 〔 mm〕 |
|
a<5 |
+0.30 ~ +0.70 |
L<50 |
+0.00 ~ +3.00 |
|
5≤a<10 |
+0.40 ~ +0.80 |
50≤L<100 |
+0.00 ~ +3.50 |
|
5≤a<10 |
+0.40 ~ +1.00 |
100≤L<200 |
+0.00 ~ +(L×3%) |
|
5≤a<10 |
+0.40 ~ +1.20 |
200≤L≤330 |
|
|
a≥20 |
+0.40 ~ +1.40 |
L>330 |
|

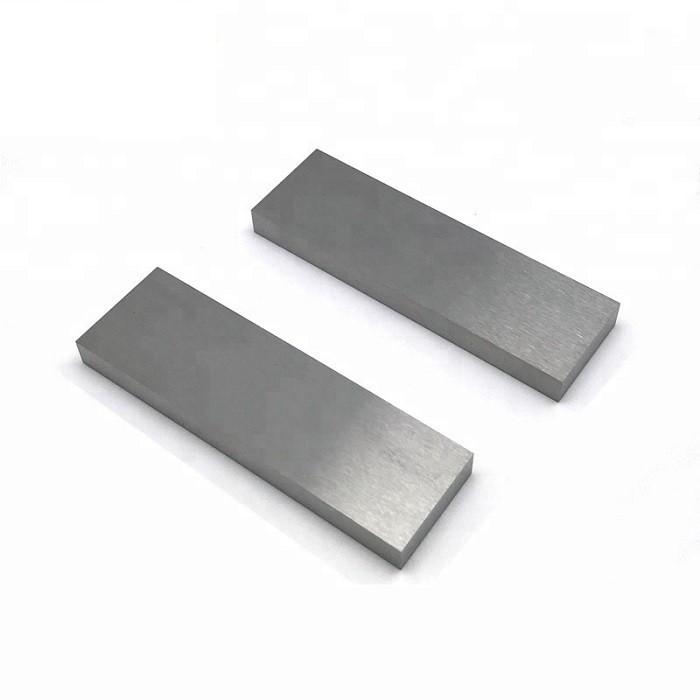

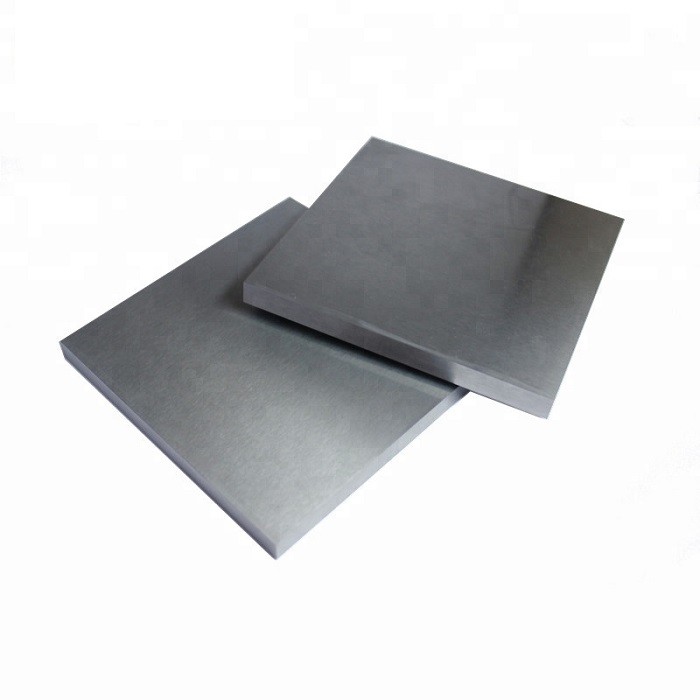

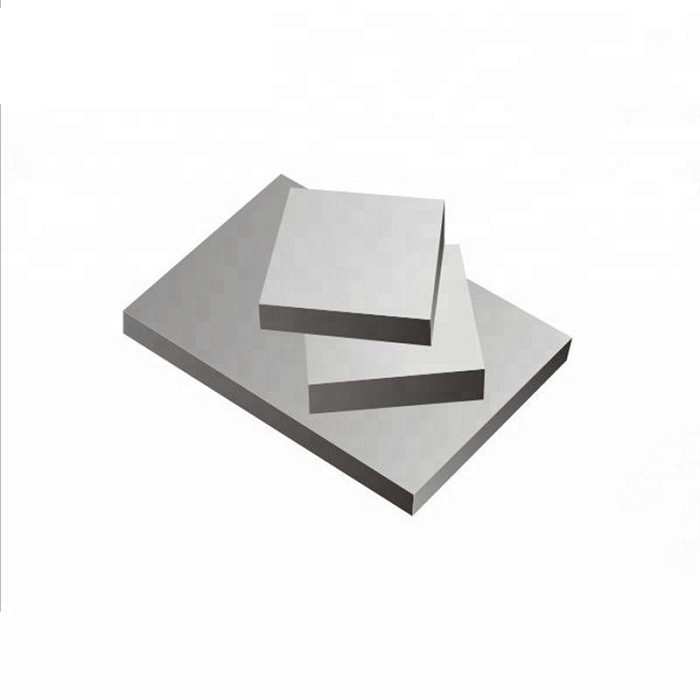

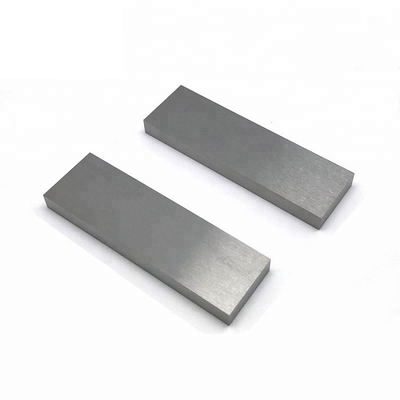

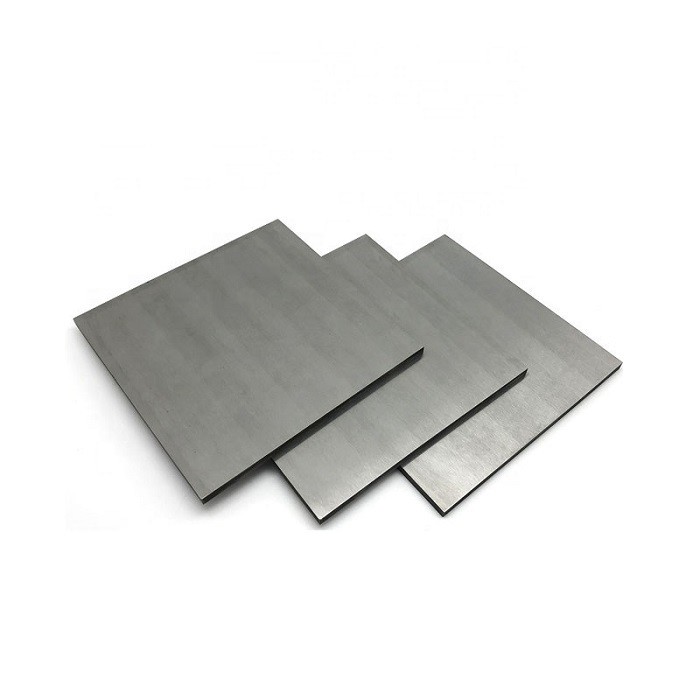

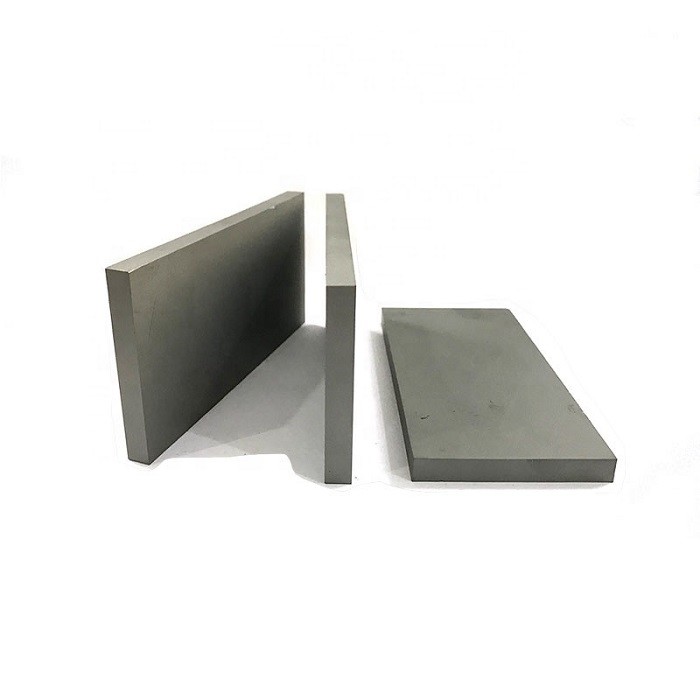

Picture show
